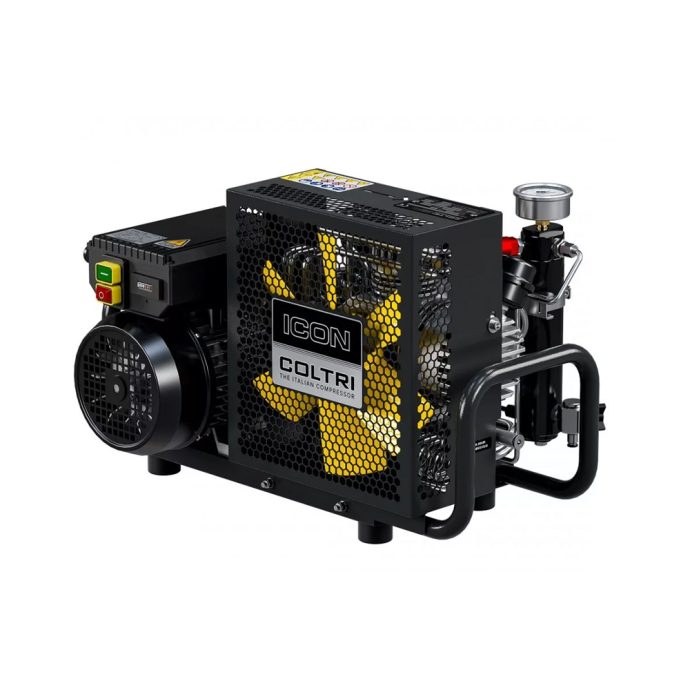

Kompressor Coltri Icon 100 LSE EM / Komba C-100 E1

Icon made history , looking to the future Available with an electric motor, Icon LSE is the most widely used portable compressor in the world. Light , but also compact? Of Course By removing weight from the electric motor and reducing the size, Icon has been able to enhance the concept of “portable”. Of course without making you give up its excellent performance. Only 30KG (Weight icon 100 LSE) Simplicity comes standard. Imagine having a compressor capable of great performance and endowed with extraordinary solidity. What would all this be without absolute simplicity in managing it? We believe that innovation is for this: to make everything simpler. It’s Icon. Have a great time works great. The Icon LSE series models meet the needs of high pressure breathing air for the diving, fire fighting and paintball world. Technical data Type of gas Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen Intake pressure Atmospheric max 300 millibars Nominal pressure 230 bar / 330 bar Working pressure 230 bar / 330 bar Max working pressure 330 bar Permissible ambient temperature range -10° C ÷ 40° C Permissible altitude 0 ÷ 2.000 m SLM Max permissible tilt 6° Design Basic Operating voltage, standard 400 V, 50 Hz Other operating voltage On three-phase electric motor at 60Hz the power (kW / Hp) increases by 20%. 230 V, 50 Hz / 440 V, 60 Hz / 230 V, 60 Hz Oil Synthetic Coltri Oil ST 755 Oil change interval 1 year / 50 h Frame Steel thickness 2 mm – color RAL 9005 – Powder coating – Scratch resistant Compressor Charging rate Measured during 10 liters cylinder filling from 0-200 bar tolerance /- 5% at 20° C ambient temperature. 50 EM 50 l/min 3 m3/h 1.7 CFM 100 EM 100 l/min 6 m3/h 3.5 CFM 100 ET 100 l/min 6 m3/h 3.5 CFM Purification system Eco-filter Cooling air flow, min 50 EM 792 m3/h 100 EM 990 m3/h 100 ET 990 m3/h Weight Standard model. Weight and dimensions may vary depending on accessories. 50 EM 30 kg 66 lb 100 EM 38 kg 83.7 lb 100 ET 38 kg 83.7 lb Dimensions (W x D x H)  50 EM 61 x 37 x 39 cm 24 x 14.5 x 15.3 in 100 EM 61 x 37 x 39 cm 24 x 14.5 x 15.3 in 100 ET 61 x 35 x 39 cm 24 x 13.8 x 15.3 in Motor Power 50 EM 1.1 kW 1.4 Hp 100 EM 2.2 kW 3 Hp 100 ET 3 kW 4 Hp Type 50 EM Single-phase electric 100 EM Single-phase electric 100 ET Three-phase electric Operating voltage/frequency Different voltage / frequency available on request.  50 EM 230 V, 50 Hz 100 EM 230 V, 50 Hz 100 ET 400 V, 50 Hz Rated current 50 EM 14 A 100 EM 14 A 100 ET 6.7 A Speed (RPM) 50 EM 2.800 100 EM 2.800 100 ET 2.800 Protection class IP54 (TEFC)
