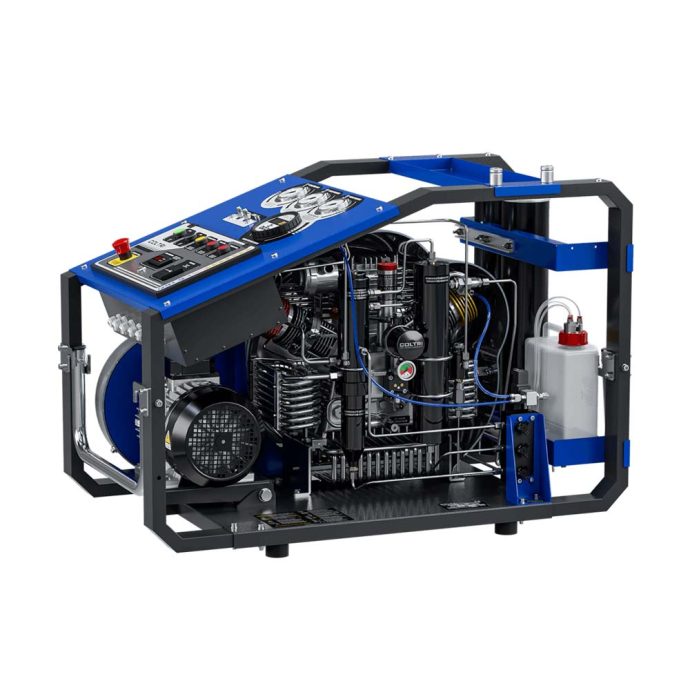

Kompressor Coltri Ergo / Komba C-315 Full Automatic

Maximum efficiency in motion. Practical to transport, ERGO stands out for its sturdiness and great operational efficiency. Equipped with monitoring panel complete with interstage pressure gauges, hitchhiking with adjustable pressure switch, automatic condensate drain and direction of rotation control. 3-stage high pressure pumping unit. Monobloc in aluminum, Crankshaft in forged steel Splash lubrication Forged aluminum connecting rods Main roller bearings Roller connecting rod bearings 1st and 2nd stage cylinders in aluminum with hard nicasil coating 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating 3rd stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Separator after the 2nd and 3rd stage Safety valves after each stage Maxifilter purification system Oil level sensor The purity of the air is achieved. The Maxifilter purification system enables reliable treatment of breathing air according to DIN EN 12021 when using original filter cartridges. Placed after the separator of the 2nd and 3rd compressor stages and before the pressure maintenance valve to create a first fundamental moisture barrier. The filtering capacity with inlet air at 20 ° C and 200 bar is 620m³. Electrical cabinet ON / OFF switch with motor protection switch. Electromechanical pressure switch that stops the compressor at the final pressure. Drainage of all separators between the individual stages and also of the final separator during compressor operation Timer for automatic condensate drain. Integrated no-load start (automatic drain every time the unit is switched off). 5 liter condensate collection tank, with silencer; capacity of about 3 liters, for the ecological disposal of condensate. Interstage pressure gauges display the working pressure for the individual compression stages. This pressure information allows you to check the tightness of the valves (inlet and outlet) of each stage and to quickly identify potential sources of failure. Chassis Open frame designed to facilitate maintenance operations and portability. The tilting motor-holder plate ensures constant V-belt tension. The protective casing in thermo-formed material conveys the cooling air on the cylinders and on the inter-stage pipes, guaranteeing a high compression efficiency. The control console equipped with inter-stage pressure gauges, the internal temperature indicator, the alarm presence and incorrect phase sequence, the oil lack alarm and the start stop and manual condensate drain commands allow easy management and maintenance of the compressor . Simplicity comes standard. Imagine having a compressor capable of great performance and endowed with extraordinary solidity. What would all this be without absolute simplicity in managing it? We believe that innovation is for this: to make everything simpler. The highest air quality is the goal of a Coltri compressor. Air purity and quality are two essential characteristics of our compressors. The air you breathe from Coltri compressors complies with the EN 12021: 2014 standards: this is why you can work, have fun and exercise with them in absolute safety. Technical data Type of gas Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen Intake pressure Atmospheric max 300 millibars Nominal pressure 250 bar / 330 bar / 360 bar Working pressure 232 bar / 300 bar / 330 bar Max working pressure 232 bar (elettrico monofase) – 420 bar (elettrico trifase) Permissible ambient temperature range -10° C ÷ 40° C Permissible altitude 0 ÷ 1.500 m SLM Max permissible tilt 6° Design Fully protective cage Operating voltage, standard 230 V; 50 Hz / 400 V; 50 Hz Other operating voltage On three-phase electric motor at 60Hz the power (kW / Hp) increases by 20%. 230 V, 50 Hz / 440 V, 60 Hz Oil Synthetic Coltri Oil ST 755 Oil change interval 1 year / 1,000 h  Frame Steel thickness 1.5 mm – color RAL 5002 RAL 9005 Powder coating – scratch-resistant Compressor Charging rate Measured during 10 liters cylinder filling from 0-200 bar tolerance /- 5% at 20° C ambient temperature. 210 EM 210 l/min 12.6 m3/h 7.4 CFM 270 EM 270 l/min 16.2 m3/h 9.5 CFM 235 ET 235 l/min 14.1 m3/h 8.2 CFM 315 ET 315 l/min 18.9 m3/h 11.1 CFM Purification system Maxifilter Cooling air flow, min 210 EM  1.240 m3/h 270 EM 2.180 m3/h 235 ET 1.440 m3/h 315 ET 2.180 m3/h Weight Standard model. Weight and dimensions may vary depending on accessories. 210 EM 159 kg 350 lb 270 EM 147 kg 324 lb 235 ET 159 kg 350 lb 315 ET 152 kg 335 lb Dimensions (W x D x H)  112 x 63 x 77 cm 44.1 x 24.8 x 30.3 in Motor Power 210 EM 4 kW 5.5 Hp 270 EM 5,5 kW 7.5 Hp 235 ET 4 kW 5.5 Hp 315 ET 5,5 kW 7.5 Hp Type 210 EM Single-phase electric  270 EM Single-phase electric   235 ET Three-phase electric 315 ET Single-phase electric Operating voltage/frequency Different voltage / frequency available on request.  210 EM 230 V, 50 Hz 270 EM 230 V, 50 Hz  235 ET 400 V, 50 Hz 315 ET 400 V, 50 Hz Rated current 210 EM 13.2 A 270 EM 13.2 A  235 ET 13.2 A 315 ET 13.2 A Speed (RPM) 210 EM 2.800 270 EM 2.850  235 ET 2.850 315 ET 2.840 Protection class IP55 (TEFC)
