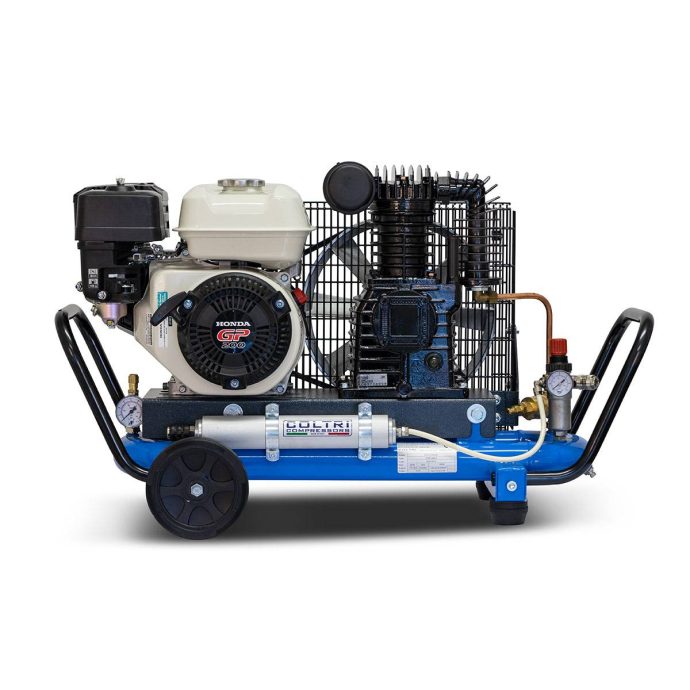

The EOLO 330 series consists of Coltri’s breathable air compressors at low pressure for professional use with a three-cylinder pumping unit for excellent performance. Equipped with filter with interchangeable cartridge, it is ideal for underwater work or with ventilated helmets. The available engines are electric, single-phase or three-phase and Honda petrol. They are extremely easy to handle thanks to the built-in tank and the presence of wheels. H : 570 mm – W : 900 mm – D : 450 mm H : 22.44 in – W : 35.43 in – D : 17.72 in EOLO 330 SH Technical specifications Drive: Honda Petrol Engine Air in output: 330 l/m – 19,80 m³/h – 11.65 CFM FAD Tank capacity: 4,5 l Operating pressure: 8 bar or 116 PSIG Net weight: 53 kg – 117 Lbs Noise level: 100,5 db Components 1. Frame 2. Rubber wheels 3. Flexible stop feet 4. Air tank 5. Handles 6. Fan belt protection mesh 7. Cooling fan 8. Belt 9. Internal combustion engine 10. Electric motor 11. Fuel tank 12. Air filter 13. Cylinder heads 14. Cylinders 15. Crankcase 16. Oil level gauge 17. Oil filler plug 18. Radiator 19. Pressure switch 20. Start – Stop switch 21. Tank pressure gauge 22. Pressure regulator 23. Output pressure gauge 24. Pressure regulating valve 25. Professional-use fast coupling 26. Purifier filter 27. Non-toxic hose rapid coupling 28. Condensate drain valve 29. Vacuum valve
